1982-85 Oldsmobile Toronado Newport 1.5 DIN Direct-fit Radio-RetroSound

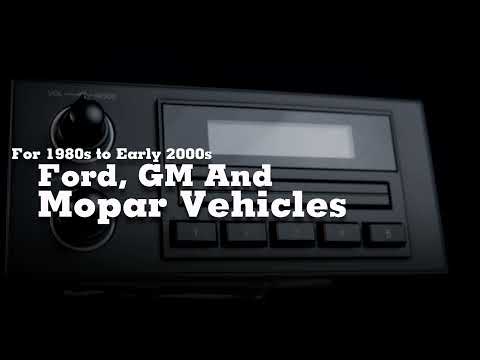

1982-85 Oldsmobile Toronado Newport 1.5 DIN Direct-fit Radio
The RetroSound® Newport is the most authentic radio replacement for your 1982-85 Oldsmobile Toronado with its factory 1.5 DIN radio opening. Installing a standard DIN-sized radio in these vehicles looks awkward and out of place, leaving unsightly gaps in the dash. The Newport fills your full 1.5 DIN opening perfectly and looks period-correct giving you the best of both worlds: modern audio technology and a factory-like aesthetic. The Newport installs quickly and hassle-free thanks to the included mounting kit and wiring harness. The Newport is available with your choice of 3 different feature sets.
Motor 1B
- Built-in Bluetooth® (Version 5.0)
- Includes Bluetooth® microphone for hands-free calls
- AM/FM RDS tuner with 30 presets
- Selectable tuner frequencies USA/EUR/AUS/JAP/RUS
- Auxiliary input for portable devices
- Built-in 275-watt (peak power) Mosfet amplifier
- 18 watts RMS x 4 channels – TrueRating™
- Non-volatile memory
- 1-Year Warranty
- Assembly is required
Quadraphonic Amplifier (sold separately)
Add more power to your RetroSound Radio with the Quadraphonic Amplifier. The Quadraphonic is a 4-channel amplifier and connects directly to your RetroSound radio delivering 45-watts RMS to all four speakers. Pair it with a RetroSound 8" powered subwoofer for a complete audio system that's a breeze to install.
Retro Manufacturing radios are a modular design. Assembly is required. This design allows for a more adjustable fit and to offer different style options. RetroSound Radios are only compatible with 12V negative grounding vehicles.
Note: Bezels, knobs, faceplates, and replacement parts are non-returnable. Please refer to product packaging for the most up to date country of origin. If you are not sure as to fitment, please contact us.
| Motor 1B | Motor 2B | Motor 4HD | |
| FM | |||
|---|---|---|---|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) with RDS | 87.5-107.9MHz | 87.5-107.9MHz | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf | 12.5 dBf | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz | 75 dB @ 400kHz | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) | 62 dB (Stereo), 67 dB (mono) | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) | 0.8% (stereo), 0.5% (mono) | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz | 32 dB @ 1kHz | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz | 30-16,000 Hz | 30-16,000 Hz |
| AM (EU and US Tuning Capable) | |||
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz | 530-1710 kHz | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector | External Antenna Connector | External Antenna Connector |
| General | |||
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D | 3.96”W x 1.98”H x 4.30”D | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 11.5-14.4 volts | 10.5-14.4 volts | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A | Max. 15A | Max. 15A |
| Current Consumption (car off) | 3.5ma | 3.5ma | 3.5ma |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 18x4 watts RMS 40x4 Max Power | 25x4 watts RMS 45x4 watts Max Power | 25x4 watts RMS 45x4 watts Max Power |
| Output Impedance | 4-8ohm | 4-8ohm | 4ohm |
| AUX 1 Input (AUX cable length, 8”) | >300 mV / 6 kΩ | - | >300 mV / 6 kΩ |
| AUX 2 Input (aux cable length, 8”) | - | - | >300 mV / 6 kΩ |
| USB 1 Input (USB cable length, 16”) | - | 5V (USB female input) | 5V (USB female input) |
| USB 2 Input | - | - | 5V (USB female input) |
| Low Level Output (4 channels) | - | 2.85 volts | 2.85 volts |
| EROM | Non-Volatile Memory | Non-Volatile Memory | Non-Volatile Memory |
